GPS E-seal Tracker (JN707A)
Intelligent electronic lock with built-in GPS and tamper alerts, secure, track, and control your cargo 24/7. The JN707A GPS E-Seal Tracker is a smart electronic seal designed to track, secure, and monitor cargo containers in real time.
GPS E-Lock: Smart Security for Global Logistics
JN707A electronic seal tracker is an upgraded product based on JN707A electronic seal tracker. It is a lightweight, easy-to-install, and low-cost smart lock product for mobile asset management solutions. It supports GPS/Beidou dual-mode positioning and provides asset Regular tracking information, support for remote modification of product configuration parameters, with rechargeable lithium batteries, recyclable, is a set of high-security, intelligent, and convenient mobile asset management solution products. The application scenario is suitable for remote monitoring of containers, flatbed trucks, and box truck management.
Key Features: Track, Tamper-Detect & Control Remotely
The JN707A E-Seal Tracker combines advanced GPS and LBS tracking technology with a durable galvanized steel wire lock rope, ensuring secure and intelligent cargo monitoring. Powered by a rechargeable 1800mAh lithium battery, it operates on a 2G network and features real-time tracking of coordinates, speed, time, and direction. The device provides instant updates on lock status, movement, and power levels while storing up to 1,000 data records for continuous operation. With smart wake-up options triggered by motion or rope cutting, it ensures immediate alerts in case of tampering or unauthorized access. Built-in temperature detection, LED status indicators, and alarms for cover removal and low battery further enhance control and visibility, making it ideal for remote asset management and cargo security.
Comparison of Our GPS E-Locks
|
Feature |
JN707A |
VT-701 |
VT-508 |
VT-109 |
Solar Power GPS E-Lock |
|
Size & Weight |
Compact (46×21×52 mm, 67 g) |
Large (195×114×37 mm, 700 g) |
Medium, metal body |
Large (195×114×37 mm, ~700 g) |
Largest (207.5×110.2×48.1 mm, 1060 g) |
|
Build Material |
Nylon plastic |
Engineering plastic |
Metal |
Metal with an SS lock hook |
Rugged waterproof housing |
|
Lock Rope Strength |
60 kg tensile |
Heavy-duty |
High strength |
200 kg tensile |
Heavy-duty rope |
|
Power Source |
1800 mAh rechargeable battery |
15000 mAh rechargeable battery |
Rechargeable battery |
15000 mAh rechargeable battery |
14400 mAh battery + Solar |
|
Battery Life |
~600 data uploads |
7–30 days to 1 year |
Long-lasting |
Long-lasting |
Months (solar-assisted) |
|
Waterproof Rating |
IP65 |
IP67 |
IP67 |
IP67 |
IP67 |
|
Tracking Technology |
GPS + LBS + Beidou |
GPS |
GPS + GSM + LBS |
GPS |
GPS + Glonass + Beidou |
|
Connectivity |
2G (GSM) |
2G (GPRS/SMS) |
GSM |
2G/3G/4G/5G |
LTE Cat M1/NB2 + GSM + BLE 5.0 |
|
Data Storage |
1000 records |
Built-in storage |
Yes |
16 MB |
49,000 points |
|
Smart Alerts |
Tamper, low battery, rope cut |
Movement, low battery, unlock |
Multiple (cut, drop, unlock) |
Tamper, unlock |
Movement, rope cut, unlock, parking |
|
Mounting |
Fixed installation |
Fixed |
Fixed |
Magnetic mount |
Built-in magnet |
|
Operating Temperature |
-30 °C to +70 °C |
-20 °C to +60 °C |
-25 °C to +70 °C |
-25 °C to +80 °C |
-25 °C to +80 °C |
Why Choose Our GPS E-Lock?
Our GPS E-Lock isn’t just another tracking device; it’s a reliable partner for your shipments. It keeps you informed in real time, alerts you the moment anything goes wrong, and saves you hours of manual checks. Built to be reusable and customizable, it’s designed to fit your operations and give you true peace of mind while your cargo is on the move.
General Specifications
| Origin | India |
| Brand Name | Jainam Multi-Product Private Limited |
| Laser Marking | Yes |
| Color | Black |
Technical Specifications
|
PRODUCT: GPS E-Seal JN707A |
|
|
Size |
46mm*21mm*52mm |
|
Length of Lock Rope, Diameter |
L 300mm,Φ1.8mm |
|
Lock rope material |
GS wire, the maximum tensile force is 60kg |
|
Weight |
About 67g |
|
Housing material |
Nylon Plastic |
|
Waterproof and dustproof grade |
IP65 |
|
Working Temperature |
-30 °C– +70 °C |
|
Storage Temperature |
-40 °C– +70 °C |
|
Relative Humidity |
5%—95% |
|
Working Current |
Av.Current:<123mA Standby:<32uA |
|
Battery Capacity |
Rechargeable lithium battery, 1800mAh, 3.7V, supports uploading About 600 positioning data (5 Minutes/Time). |
|
GPS Antenna |
Built-in |
|
GSM Antenna |
Built-in |
|
SIM Micro SIM Card |
Micro SIM Card |
|
GSM module |
Support 2G frequency band: GSM 850MHz/900MHz,DSC1800MHz,PCS1900MHz. Communication Mbps: GPRS data downstream traffic: Max 85.6kpbs GPRS data Upstream traffic: Max 85.6kpbs Coding format: CS-1、CS-2、CS-3 and CS-4 Embedded |
|
GPS module (Integrated module) |
GPS and Beidou are both supported: Frequency Band: GPS L1 Frequency (1575.42MHz), BeiDou B1 Frequency (1561.10MHz); Sensitivity Track-167dBm
Start speed: Hot start <1s Cold start 35s(typical value) Accuracy <10 meters |
Carton size and weight vary according to cable length. Figures shown in the table are for the standard cable length packaging. Please contact us for additional details.
Reusable GPS E-Lock: Real-Time Tracking, Geofence & Tamper Alerts
FREE QUOTE WITHIN 24 HOURS
Tell us your requirements, we’ll get back to you with tailored pricing and product guidance.
Match Your Needs with the Right Model
- Function: Real-time GPS tracking, remote lock control, cargo security
- Geofence: Supported
- Waterproof: IP67
- Working Modes: Smart sleep/wake via 3-axis accelerometer
- Dimensions: 195mm × 114mm × 37mm
- Weight: 700g
- Material: Engineering plastic
- Battery: 15000mAh rechargeable lithium battery
- Battery Life: 7-30 days (real-time mode), up to 1 year (2 updates/day mode)
- GPS Module: Ublox MAX-7Q
- GSM Module: Quectel M35
- Communication: TCP (GPRS) and SMS
- Sim Card: Mini SIM
- Operating Temp: -20°C to +60°C
- Storage Temp: -40°C to +80°C
- Humidity Resistance: 5%–99% RH
- Power Consumption: <90 mA (working), <100 µA (standby)
GPS E-Lock

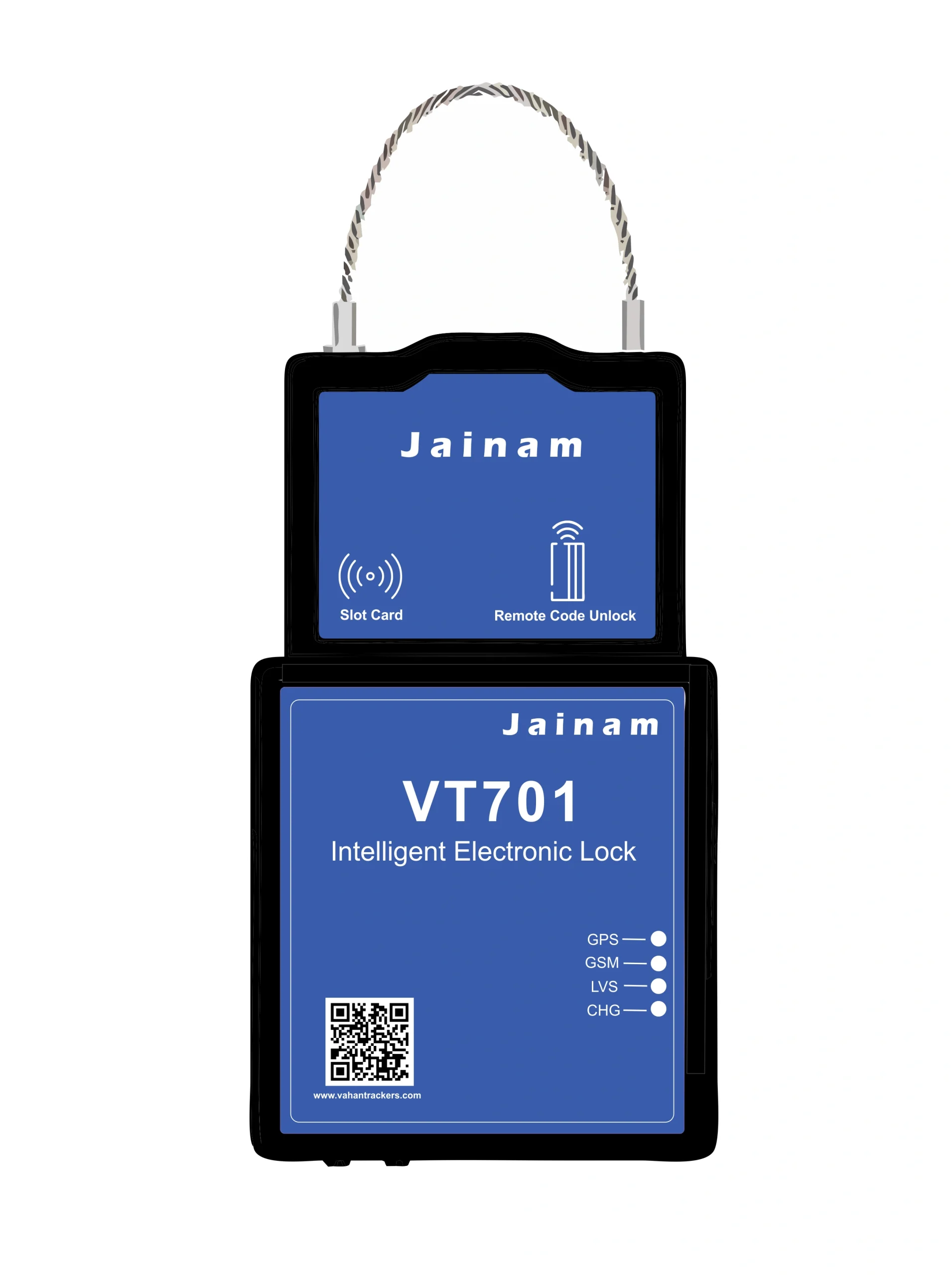

VT-701
- Type: Wireless GPS E-Lock.
- Usage/Application: Truck, Cargo, Containers.
- Material: Metal.
- Waterproof Rating: IP67.
- Positioning: GPS + GSM + LBS (1 BTS).
- Alarms: Low power, dismounting, drop, string cut, unlock, and lock alarms.
- Mobile Access: Supported.
- Brand: Jainam Multi-Product (India) Pvt. Ltd.
- Transport Mode: Road.
- Packaging: Box.
GPS E-Lock

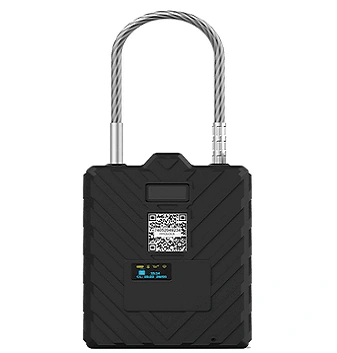

VT-508
- Connection: 2G/3G/4G/5G Sim Card, usb, bluetooth
- Map Type: Worldwide
- OS: FREERTOS
- Type: GPS Tracker
- Placement: Portable
- Warranty: 18 months
- AutomotiveSize: 195*114*37mm
- Installation: Magnetic mount
- OS: FREERTOS
- Transmission mode: Support TCP and SMS
- Memory: 16MB
- Lock hook: SS, tensile resistance 200KG
- Waterproof: IP67
- Built-in battery capacity: Rechargeable battery 15000mAh
- Charging specification: DC5V, 2A, 5521 interface
GPS E-Lock

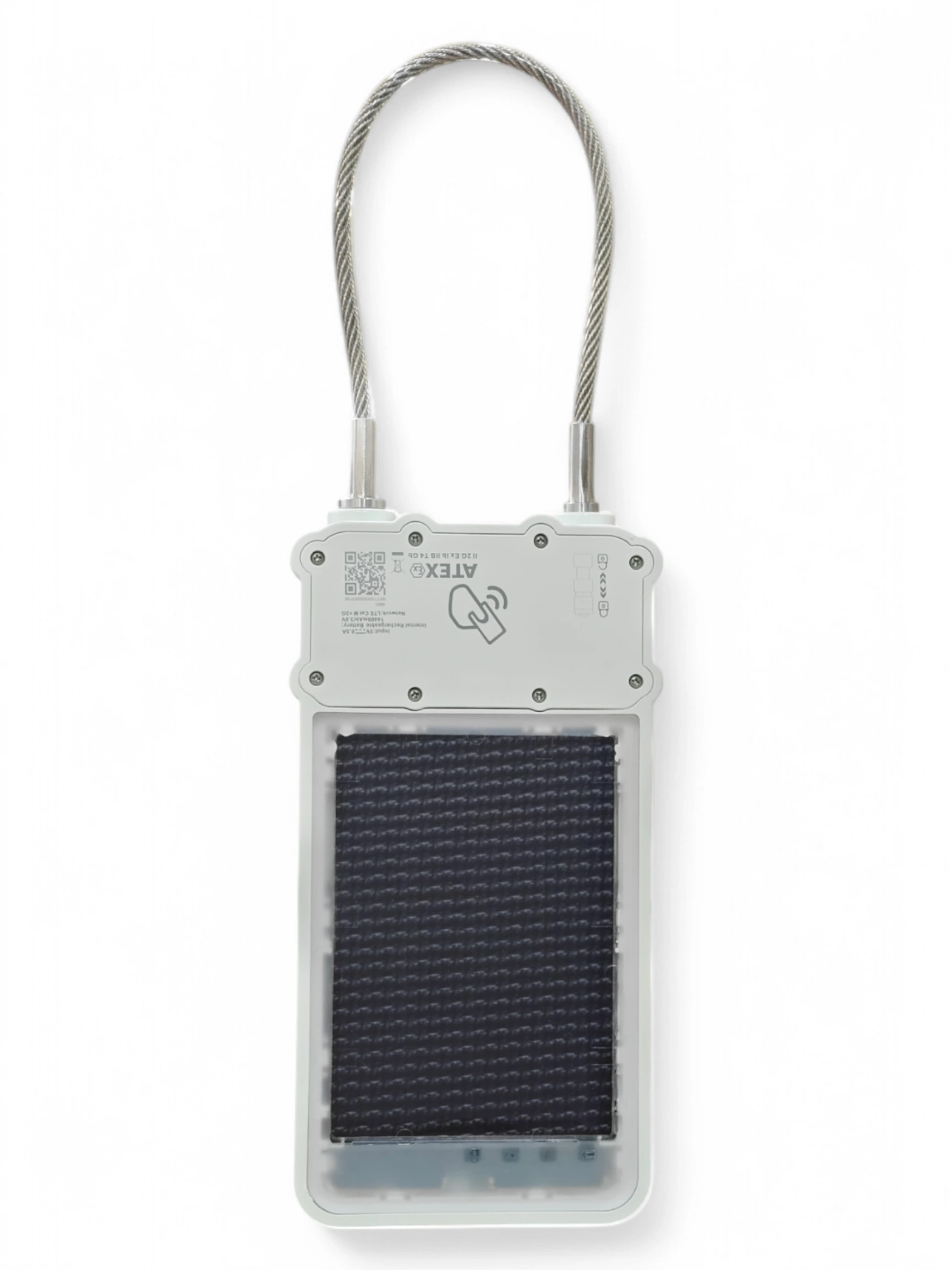

VT-109
- Use Case: Outdoor tracking for containers, trailers, trucks.
- Battery: 14400mAh Li-Polymer 3.6V (Months of life).
- Power Source: Solar Panel + USB Type-C Charging.
- Charging Time: ~30 hours with 5V 1A adapter.
- Connectivity: LTE Cat M1/NB2, GSM/EDGE, BLE 5.0.
- Unlock Methods: RFID, BLE, OTA, SMS.
- Alarms: Rope cut, Lock/Unlock, Movement, Parking.
- GNSS: MediaTek High-Gain (GPS+Glonass/Beidou).
- Location Accuracy: < 2.5m (CEP).
- Data Storage: Up to 49,000 points offline buffer.
- Geo-fence Support: 64 internal geo-fence zones.
- Mounting Method: Built-in Magnet.
- Rope Length: 350mm (Standard).
- Housing Material: Rugged & Waterproof (IP67).
- Temperature Range: -25°C to +80°C.
- Dimensions: 207.5 x 110.2 x 48.1 mm.
- Weight: 1060g. (37.4 oz)
- Certificates: FCC, CE, IC, PTCRB, RCM, AT&T, US Cellular, Orange.
- Security Features: MD5/AES256 Encryption.
Solar Power
GPS E-Lock
Featured Products
The Klik e-Seal Edge
24x7 Premier Support
Technical support team is dedicated to providing clients with 24/7 telephone and online assistance for a seamless experience round the clock.
ISO Certified
- ISO 9001 : 2015 Certificate
- ISO 17712:2013 Certified
- ISO 18000-6 Class1 Generation 2
- ISO-17712 Certificate
Global Access
We supply RFID solutions globally making our RFID Reader/Scanners are accessible throughout the Indian PORTS/ICD/CFS
Frequently Asked Questions
No. GPS E-Locks are built to be highly tamper-resistant; any attempt to disable or meddle with the device triggers an alert to the owner or fleet manager via notifications
– Yes, it meets ISO 17712:2013 standards and C-TPAT requirements.
The battery life of the JN707C electronic lead seal tracker is calculated according to the number of data transmissions. The device supports at least 1100 location data reports. If 12 locations need to be reported every day, the battery can be used for about 34 days.
Yes, the premise is that the SIM card used in the device needs to support the SMS service.
It cannot be reused. Every time you unseal the device, you need to cut the lock rope. The lock rope is for one-time use.
They are primarily used in customs, high-value cargo transport, and at border checkpoints, where enhanced security is essential.
Each seal is packed in individual bags (1 per bag), with 10 bags per carton, ensuring convenient handling and distribution.
