High Security Barrier Seal -
Model: J103A
Barrier Seal J103A is a strong, tamper-proof seal designed to lock containers, trucks, and cargo securely. It’s ISO-certified and built to prevent break-ins or tampering, making it a reliable choice for international shipping and customs checks.
Barrier Seal Lock Designed for Maximum Protection
Our barrier seal is designed to lock and protect shipping containers, cargo trucks, trailers, and other transport vehicles. Built with a solid steel bar, it’s strong enough to prevent tampering and clearly shows if anyone tries to break it. It also meets strict international shipping and customs standards, including ISO 17712:2013.
Why Choose a Barrier Seal for Container Security?
Unlike cable or plastic seals, a barrier seal blocks the container doors from being opened. It shows if someone has tried to tamper with it and acts as a strong visual warning. That’s why it’s perfect for protecting valuable or sensitive shipments.
Comparison of Our Barrier Seals
Feature / Model | KSBRS-701 | KSBRS-702 | KSBRS-703 | J103A |
Material | IS2062, E250BR Steel Plate | IS2062, E250BR Steel Plate | IS2062, E250BR Steel Plate | IS2062, E250BR Steel Plate |
Length * Width | 448*60mm | 448*60mm | 448*40mm | 560*35mm |
Gross Weight (per 10 pcs) | 19kg | 19kg | 20.6kg | 9kg |
Tamper-Proof Lock Mechanism | Yes | Yes | Yes | Yes |
Adjustable Locking Length | Yes | Yes | Yes | Yes |
Color Finish | Golden Zinc Plating | Black | Golden Zinc Plating | Golden Zinc Plating |
Why Klik e-Seal?
Klik e-Seal is a government-approved manufacturer of container seals, trusted by logistics companies, customs officials, and government agencies worldwide. We make everything in-house and follow strict quality checks to ensure our barrier seals don’t just meet the standards; they go beyond them.
General Specifications
| Origin | India |
| Brand Name | JNM |
| Laser Marking | Serial number, barcode and logo |
| Lock Pin | Low galvanized carbon steel |
| Color | Golden zinc plating |
Technical Specifications
| PRODUCT: J103A High Security Barrier Seal | |
| Model | J103A |
| Material | High-strength Carbon steel |
| Dimensions | Bar: 560 x 35 mm (56 x 3.5 cm) Locking Bolt: 42 mm (4.2 cm) |
| Bolt Diameter | Ø 14.5 mm (1.45 cm) |
| Tensile Strength | ≥ 1000 kgf (≥ 4629 lbf) |
| Marking Area | Pin: 23.5 mm (2.35 cm) |
| Max Marking Digits | Serial no : 10 |
| PACKAGING | |
| Carton | Inner |
| Quantity | 25 sets |
| Dimensions (mm) | 580 x 210 x 190 mm |
| Gross Weight (kg) | 17 (37.47 lb) |
| Volume (m3) | 0.02234 (0.789 cu.ft.) |
Carton size and weight vary according to cable length. Figures shown in the table are for the standard cable length packaging. Please contact us for additional details.
How to use the J103A High Security Barrier Seal

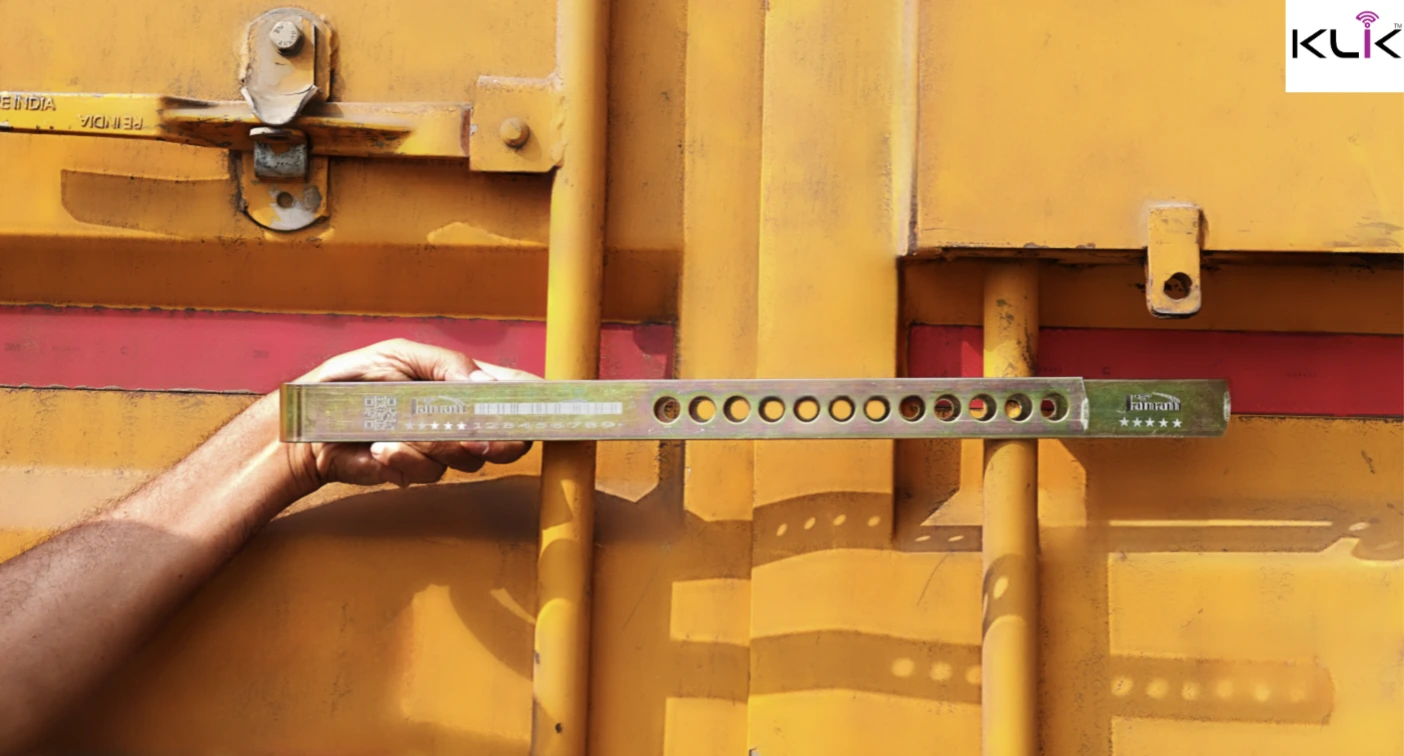

1. Position the Bar on container

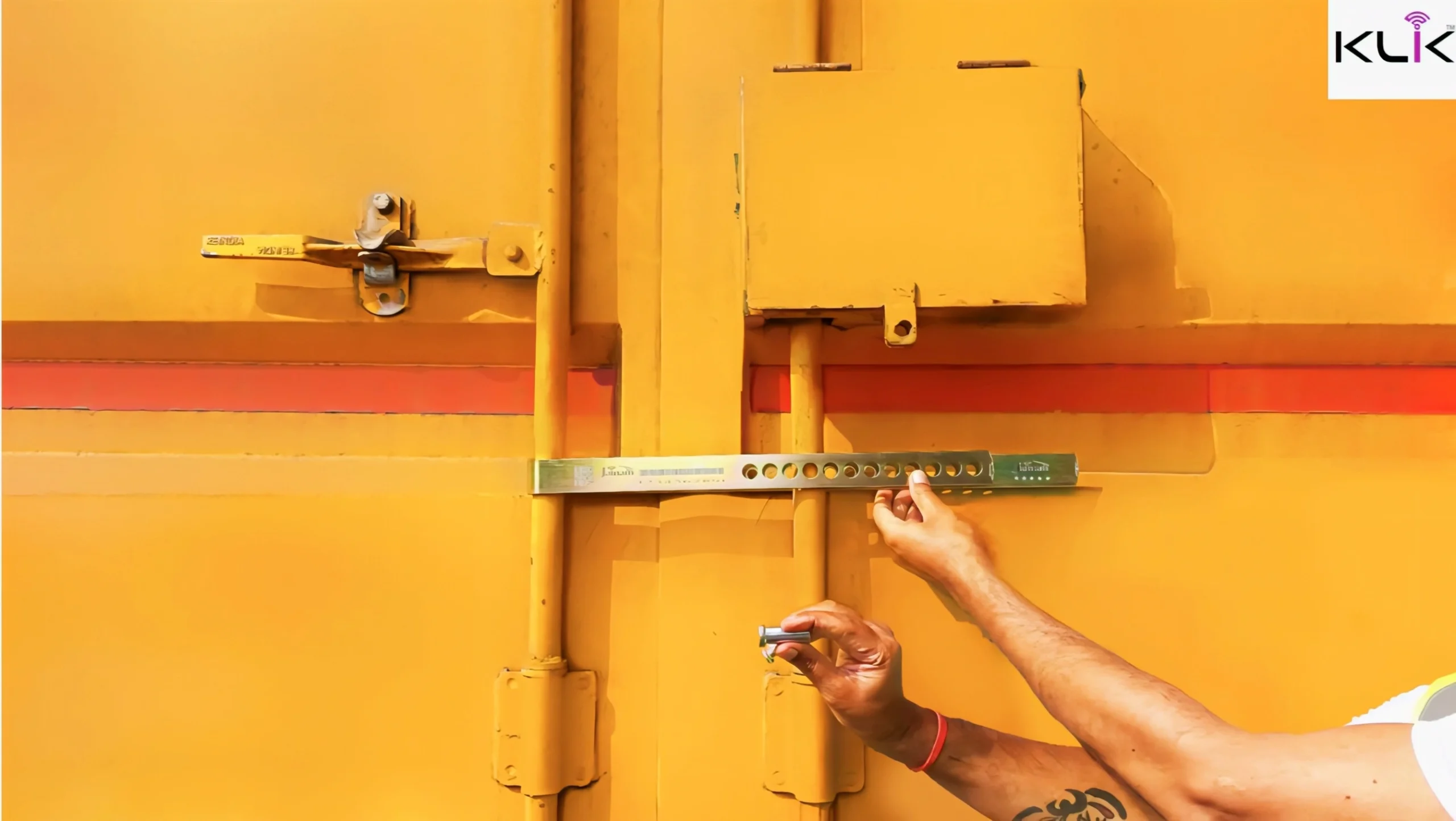

2. Select the correct locking position

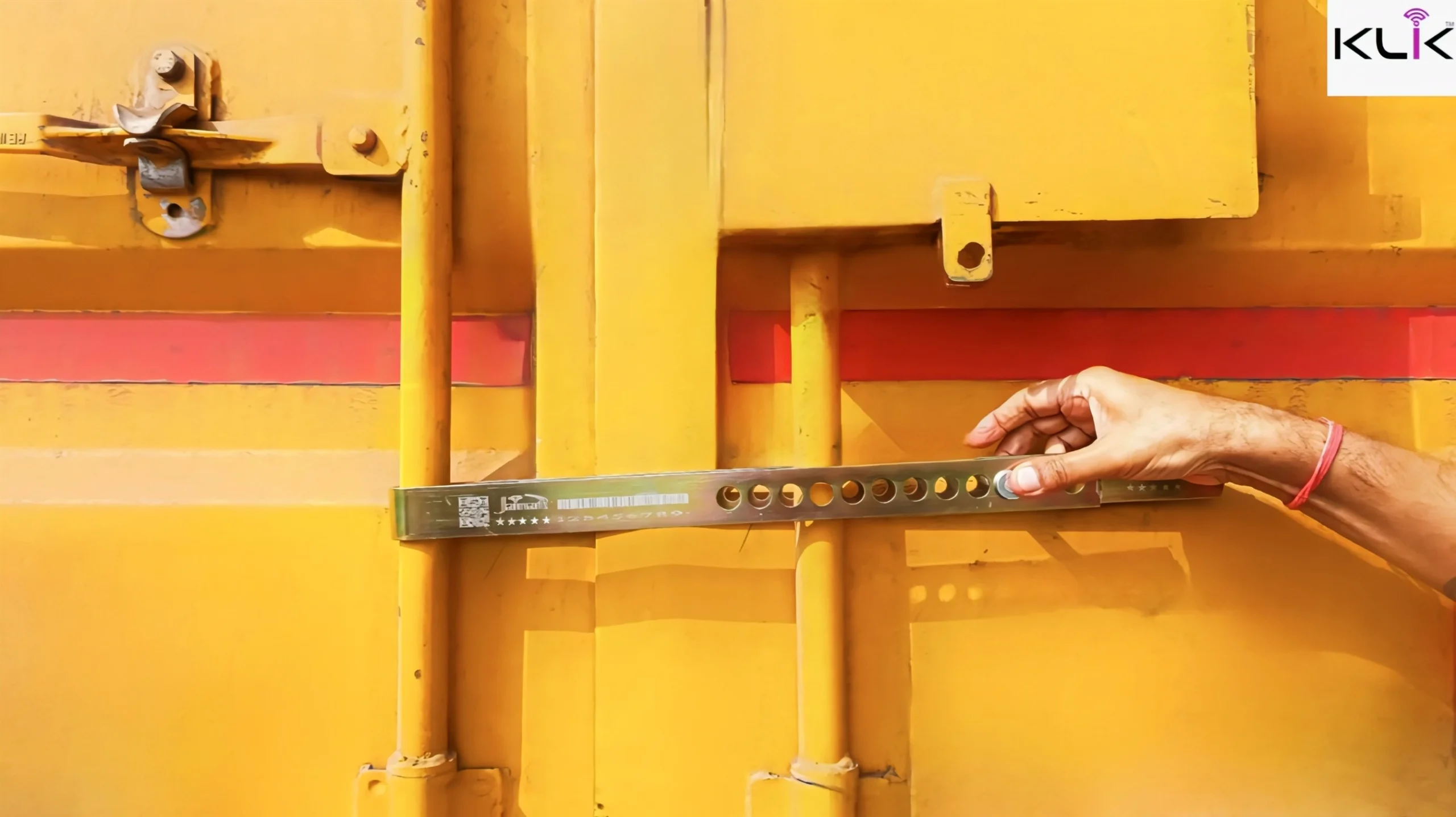

3. Insert the locking bolt until it clicks

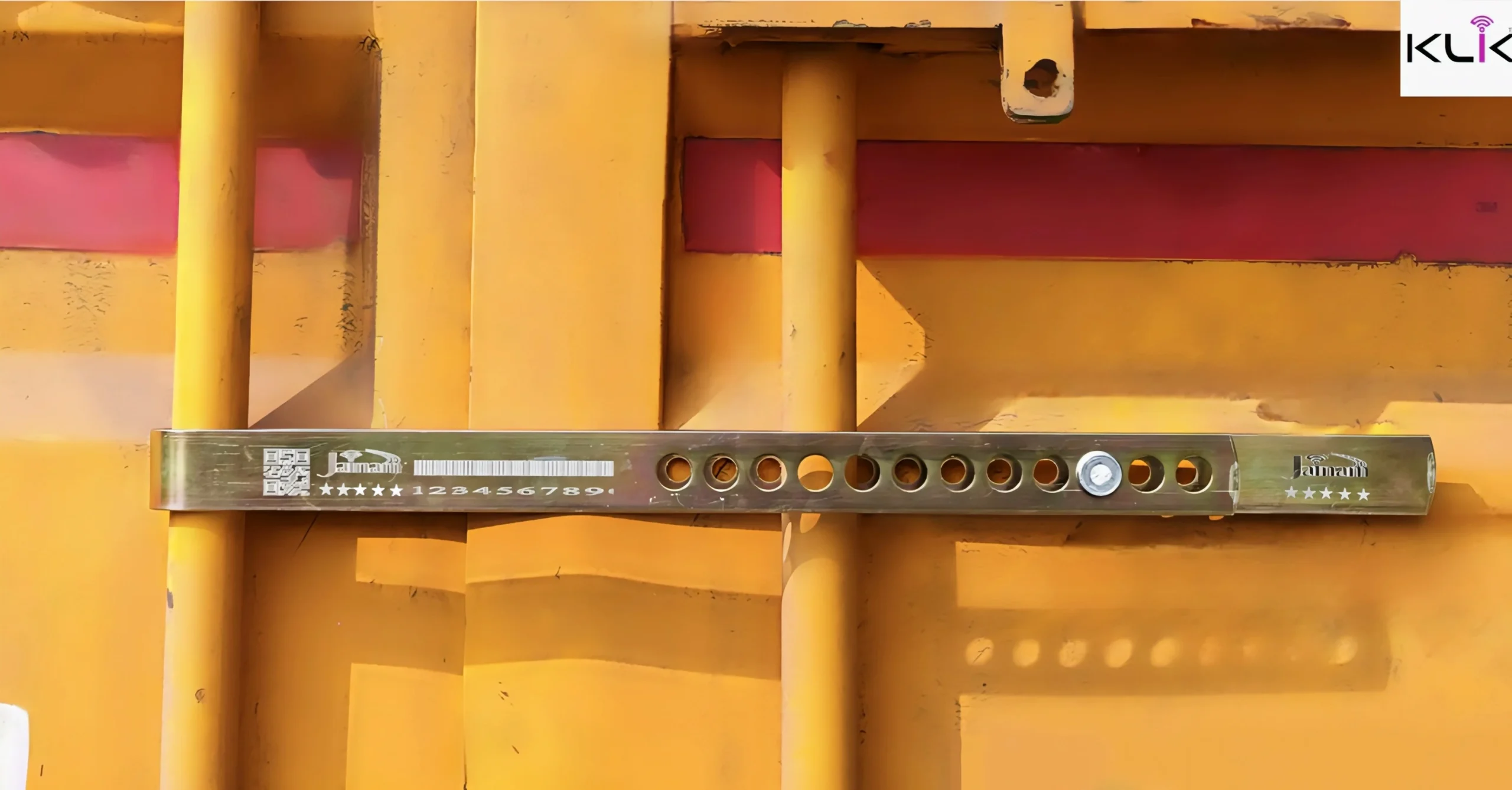

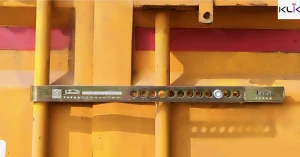

4.Seal is now temper evident and ready to move

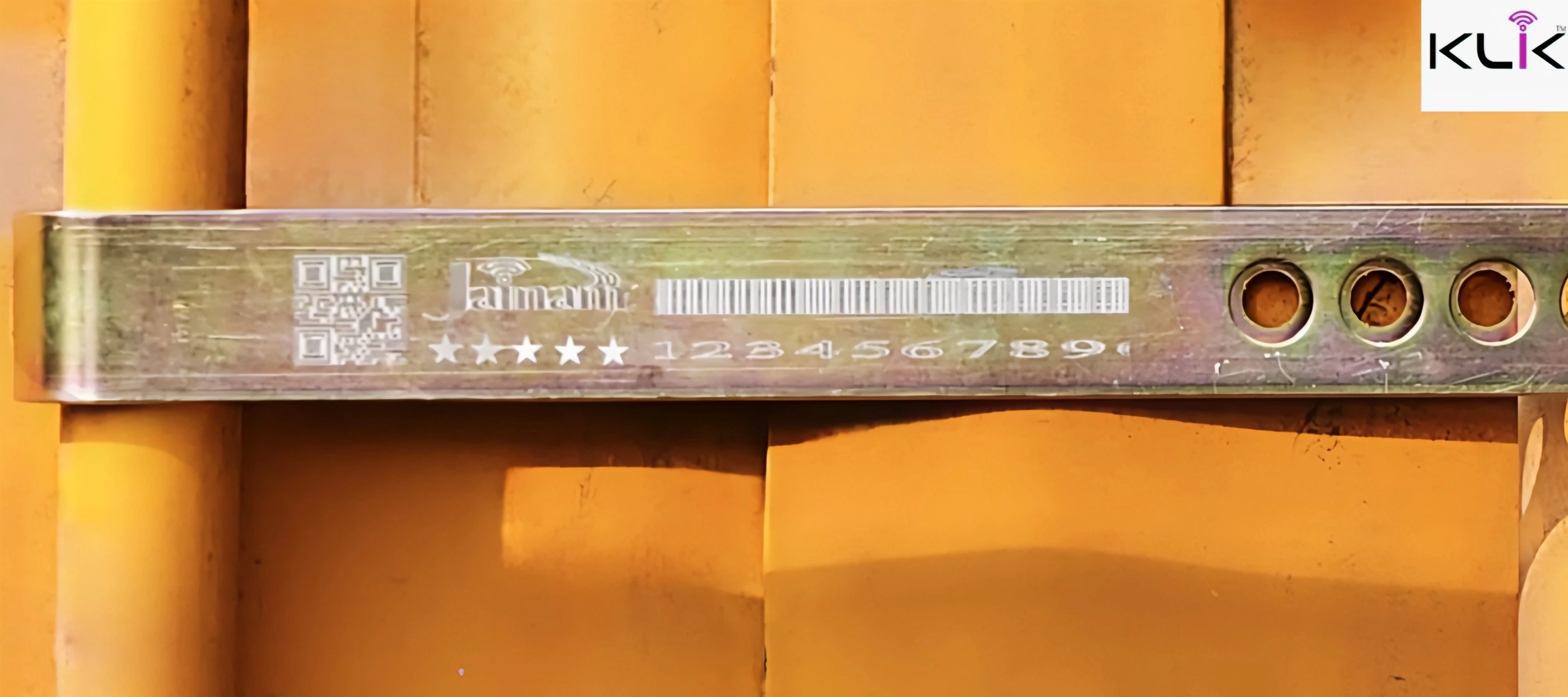

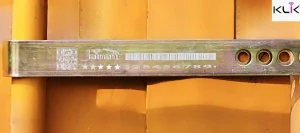

5. Confirm matching serial numbers

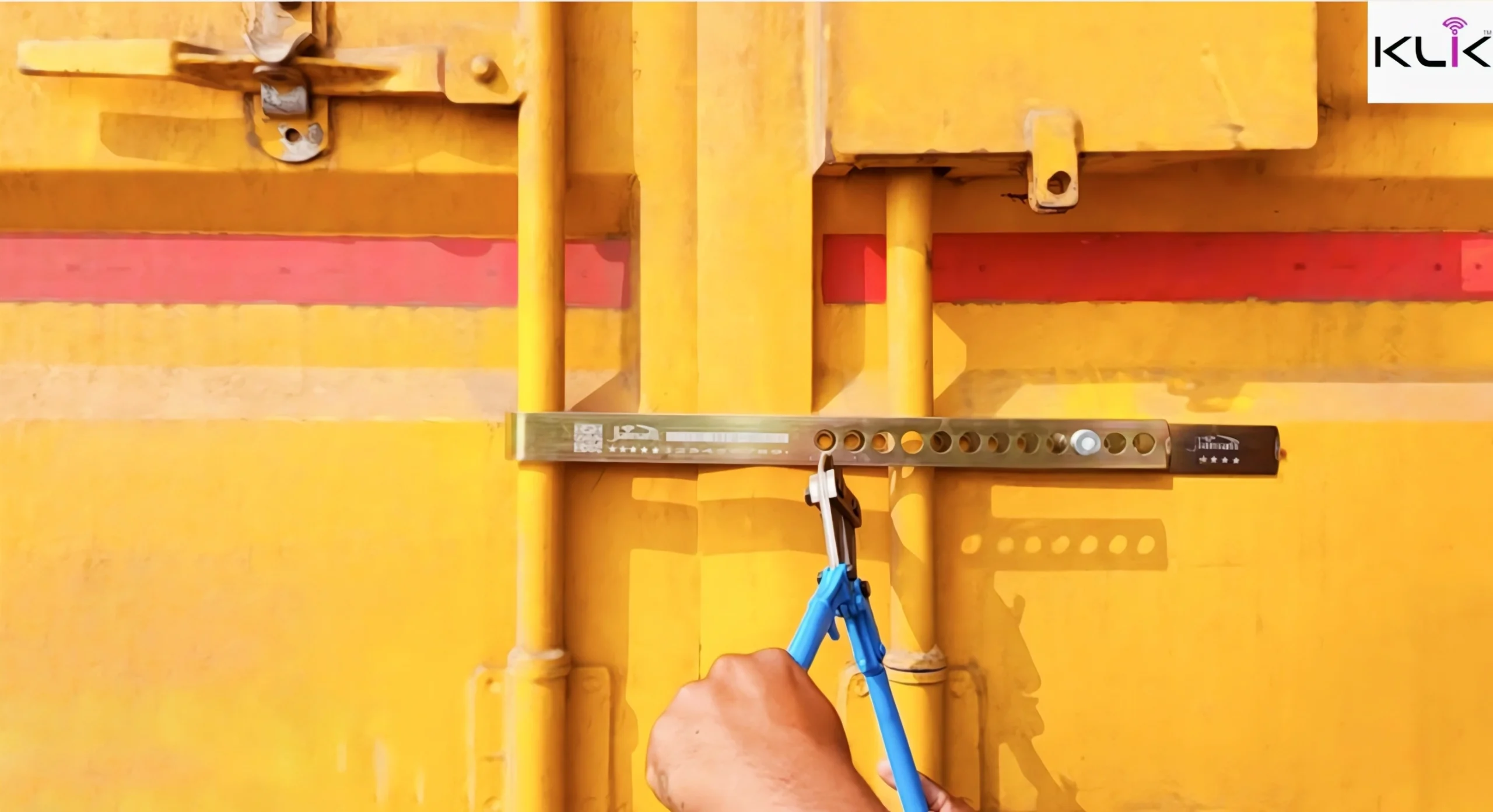

6. Use cutter to remove the seal after transit
Barrier Seal Lock Designed for Maximum Protection
Our barrier seal is designed to lock and protect shipping containers, cargo trucks, trailers, and other transport vehicles. Built with a solid steel bar, it’s strong enough to prevent tampering and clearly shows if anyone tries to break it. It also meets strict international shipping and customs standards, including ISO 17712:2013.
Why Choose a Barrier Seal for Container Security?
Unlike cable or plastic seals, a barrier seal blocks the container doors from being opened. It shows if someone has tried to tamper with it and acts as a strong visual warning. That’s why it’s perfect for protecting valuable or sensitive shipments.
Comparison of Our Barrier Seals
| Feature / Model | KSBRS-701 | KSBRS-702 | KSBRS-703 | J103A |
| Material | IS2062, E250BR Steel Plate | IS2062, E250BR Steel Plate | IS2062, E250BR Steel Plate | IS2062, E250BR Steel Plate |
| Length * Width | 448*60mm | 448*60mm | 448*40mm | 560*35mm |
| Gross Weight (per 10 pcs) | 19kg | 19kg | 20.6kg | 9kg |
| Tamper-Proof Lock Mechanism | Yes | Yes | Yes | Yes |
| Adjustable Locking Length | Yes | Yes | Yes | Yes |
| Color Finish | Golden Zinc Plating | Black | Golden Zinc Plating | Golden Zinc Plating |
Why Klik e Seal?
Klik e-Seal is a government-approved manufacturer of container seals, trusted by logistics companies, customs officials, and government agencies worldwide. We make everything in-house and follow strict quality checks to ensure our barrier seals don’t just meet the standards; they go beyond them.
General Specifications
| Origin | India |
| Brand Name | JNM |
| Laser Marking | Serial number, barcode and logo |
| Lock Pin | Low galvanized carbon steel |
| Color | Golden zinc plating |
Technical Specifications
| PRODUCT: J103A High Security Barrier Seal | |
| Model | J103A |
| Material | High-strength Carbon steel |
| Dimensions | Bar: 560 x 35 mm (56 x 3.5 cm) Locking Bolt: 42 mm (4.2 cm) |
| Bolt Diameter | Ø 14.5 mm (1.45 cm) |
| Tensile Strength | ≥ 1000 kgf (≥ 4629 lbf) |
| Marking Area | Pin: 23.5 mm (2.35 cm) |
| Max Marking Digits | Serial no : 10 |
| PACKAGING | |
| Carton | Inner |
| Quantity | 25 sets |
| Dimensions (mm) | 580 x 210 x 190 mm |
| Gross Weight (kg) | 17 (37.47 lb) |
| Volume (m3) | 0.02234 (0.789 cu.ft.) |
Carton size and weight vary according to cable length. Figures shown in the table are for the
standard cable length packaging. Please contact us for additional details.
How to use the J103A High Security Barrier Seal
1. Position the Bar on container
2. Select the correct locking position
3. Insert the locking bolt until it clicks
4.Seal is now temper evident and ready to move
5. Confirm matching serial numbers
6. Use cutter to remove the seal after transit
Free Quote with in 24 hours
Tell us your requirements, we’ll get back to you with tailored pricing and product guidance.
Match Your Needs with the Right Model
- Model : KSBRS-701
- Material Grade : IS2062, E250BR Steel Plate
- Length*Width : 443*60mm
- Quantity/Carton : 10/Carton
- Quantity Per Pack : 1 Pieces/Bag
- Carton Dimension : 46x30x9cm
- Gross Weight : 19Kg
- Application : All kinds of containers, vans, oil tankers, train containers and so on.
- Industry : Customs, Ports, Cross-border Transport
- Printing Support : Customized logo, name, sequential numbers etc.
- Colors :Golden Zinc Plating
Barrier Seal
KSBRS-701
- Model : KSBRS-702
- Material Grade : IS2062, E250BR Steel Plate
- Length*Width : 443*60mm
- Quantity/Carton : 10/Carton
- Quantity Per Pack : 1 Pieces/Bag
- Carton Dimension : 46x30x9cm
- Gross Weight : 19Kg
- Application : All kinds of containers, vans, oil tankers, train containers and so on.
- Printing Support : Customized logo, name, sequential numbers etc.
- Colors : Black
Barrier Seal
KSBRS-702
- Model : KSBRS-703
- Material Grade : IS2062, E250BR Steel Plate
- Length*Width : 443*40mm
- Quantity/Carton : 10/Carton
- Quantity Per Pack : 1 Pieces/Bag
- Carton Dimension : 48x28x15cm
- Gross Weight : 20.6Kg
- Application : All kinds of containers, vans, oil tankers, train containers and so on.
- Printing Support : Customized logo, name, sequential numbers etc.
- Colors : Golden Zinc Plating
Barrier Seal
KSBRS-703
Featured Products
The Klik e-Seal Edge
24x7 Premier Support
Technical support team is dedicated to providing clients with 24/7 telephone and online assistance for a seamless experience round the clock.
ISO Certified
- ISO 9001 : 2015 Certificate
- ISO 17712:2013 Certified
- ISO 18000-6 Class1 Generation 2
- ISO-17712 Certificate
Global Access
We supply RFID solutions globally making our RFID Reader/Scanners are accessible throughout the Indian PORTS/ICD/CFS
Frequently Asked Questions
 An ISO 17712 seal is a high-security, tamper-evident seal certified for securing containers in international shipping.
Yes, it meets ISO 17712:2013 standards and C-TPAT requirements.
Yes, it’s designed for one-time use to ensure tamper evidence and compliance.
The seal supports laser engraving, allowing for the customization of logos, barcodes, and serial numbers for secure identification.
Barrier Seals are widely used to secure containers, vans, oil tankers, and trains, offering robust protection against tampering.
They are primarily used in customs, high-value cargo transport, and at border checkpoints, where enhanced security is essential.
Each seal is packed in individual bags (1 per bag), with 10 bags per carton, ensuring convenient handling and distribution.
